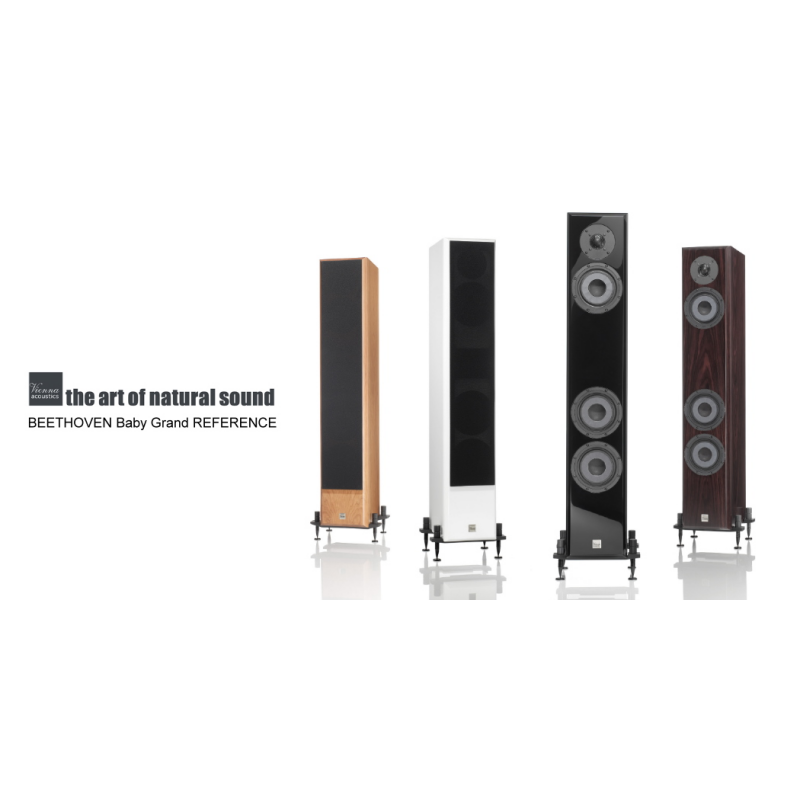

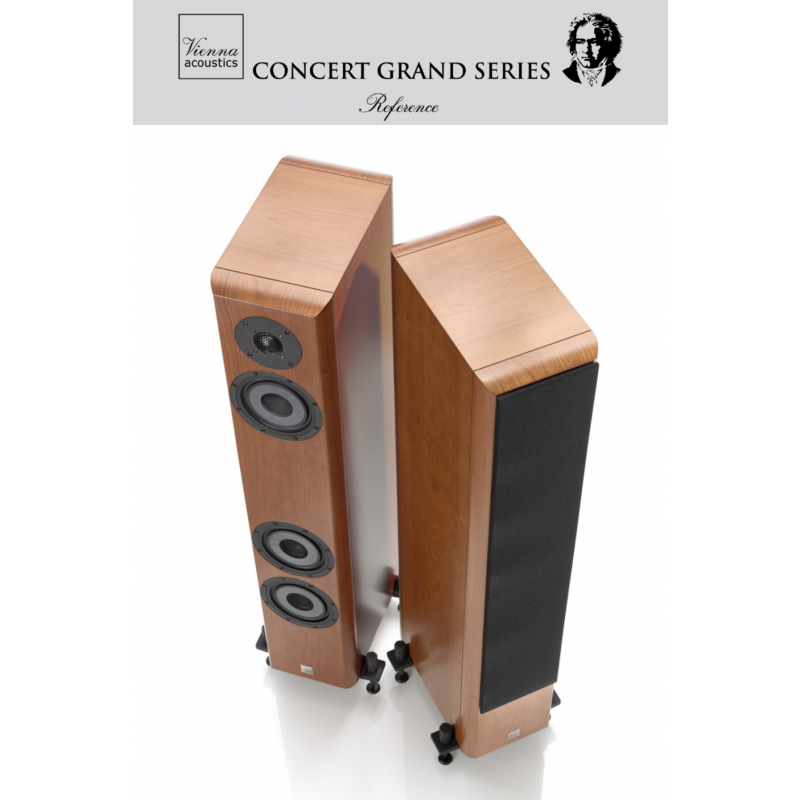

Beethoven Baby Grand Reference

Technical Data

Impedance 4 Ohms
Frequency response 33 - 23000 Hz
Sensitivity 89 dB
Recommended Amplifier 40 - 300 Watts
Drive Units
6" Woofer (2) Composite Cone: Flat X4P Spidercone with recessed fabric center-cone
6” Midrange Composite Cone: Flat X4P Spidercone with recessed fabric center-cone
Tweeter 1.1" Hand Coated Vienna Acoustics Silk Dome
Bass System
Bass Reflex
Bass Function
Impulse Optimizing QB 3 (Quasi-Butterworth)

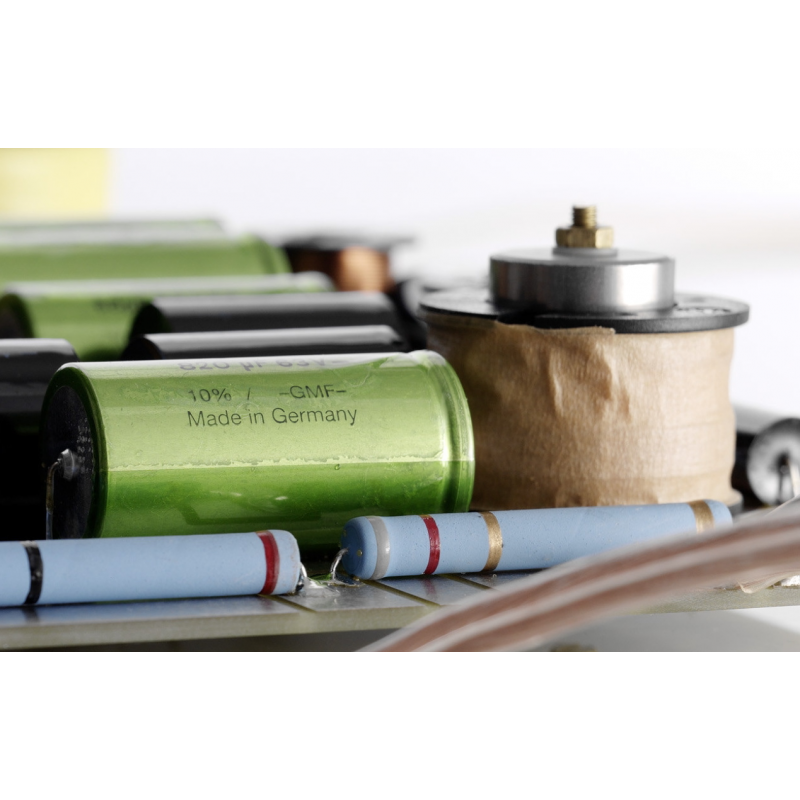

Crossover Components Polypropylene Capacitors, 1% tolerance, Coils 0,7% tolerance, Midrange/Tweeter Section Air Coils, Special Powder Core for Bass Section, Metal Film Resistors 1% tol., Inductance Free
Crossover Function 3-way, 6 dB and 12 dB Bessel
Weight per Pair 52 kg / 115 lbs
Dimensions (W x H x D) mm
182 x 1025 x 330 mm (without base assembly)
260 x 1095 x 330 mm (with base assembly)
color Premium Rosewood, Cherry, Piano Black, Piano White
